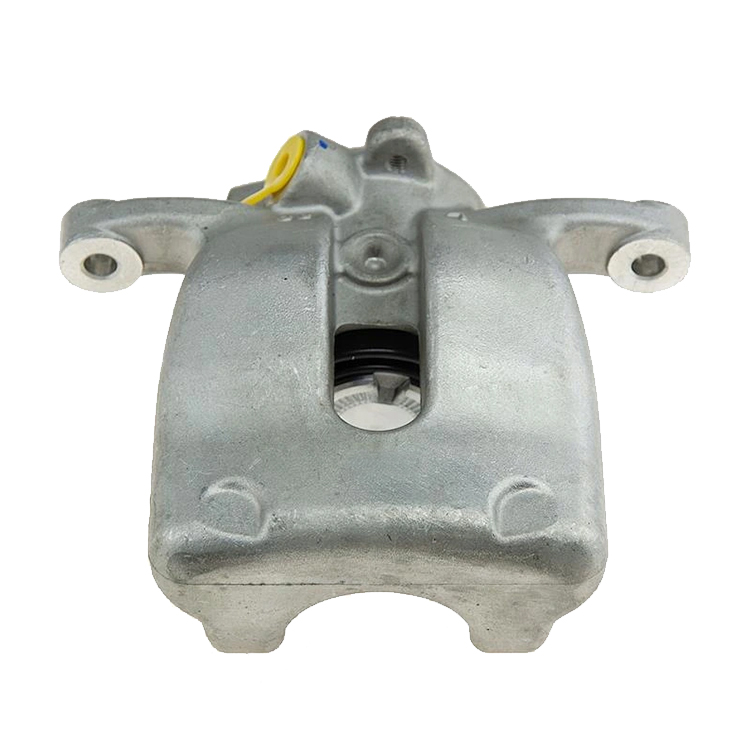

Renault Brake Caliper 440118013R 44011-8013R
Reference No.
|
ATE |
24623817077 |
|
BREMBO |
F68116 |
|
BUDWEG CALIPER |
344274 |
|
ERA Benelux |
BCE55780 |
|
NK |
2139157 |
|
TRISCAN |
8170344274 |
|
TRW |
BHN1011E |
Part List
| 203863 (REPAIR KIT) |
| 233856 (PISTON) |
| 183863 (SEAL, PISTON) |
| 208009 (CONTROL ELEMENT, PARKING BRAKE CALIPER) |
| 189918 (GUIDE SLEEVE KIT) |
Compatible Applications
| Renault SCéNIC III (JZ0/1_) (2009/02 – /) |
| Renault GRAND SCéNIC III (JZ0/1_) (2009/02 – /) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
