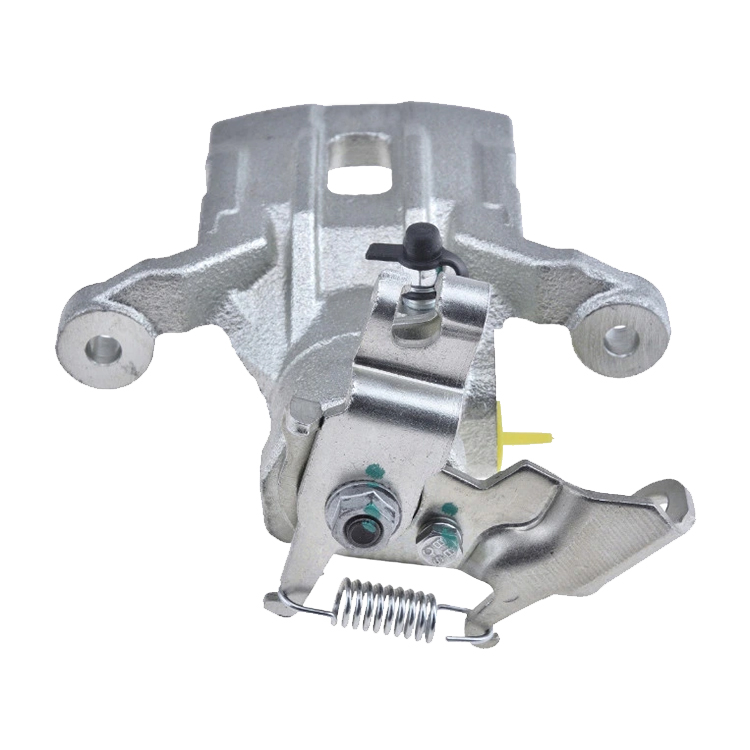

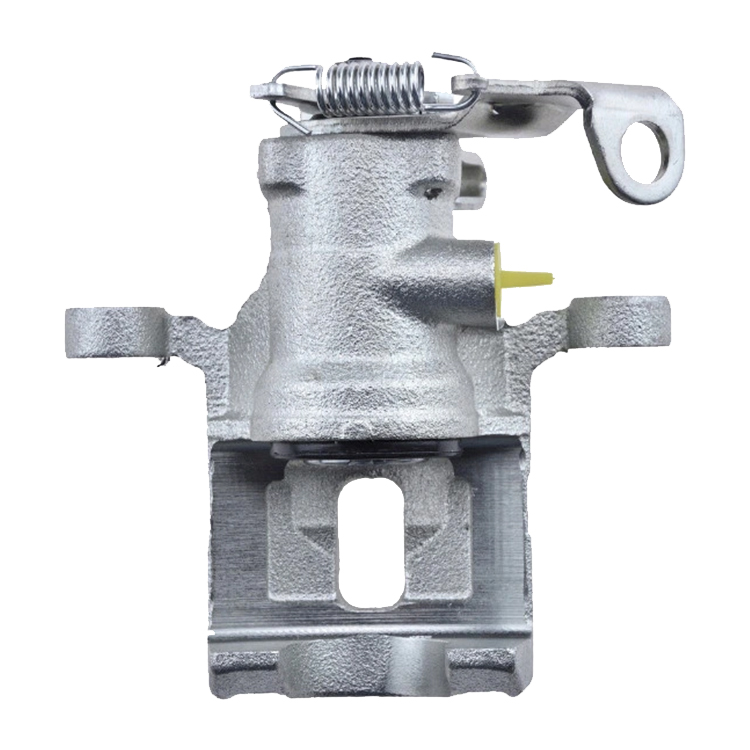

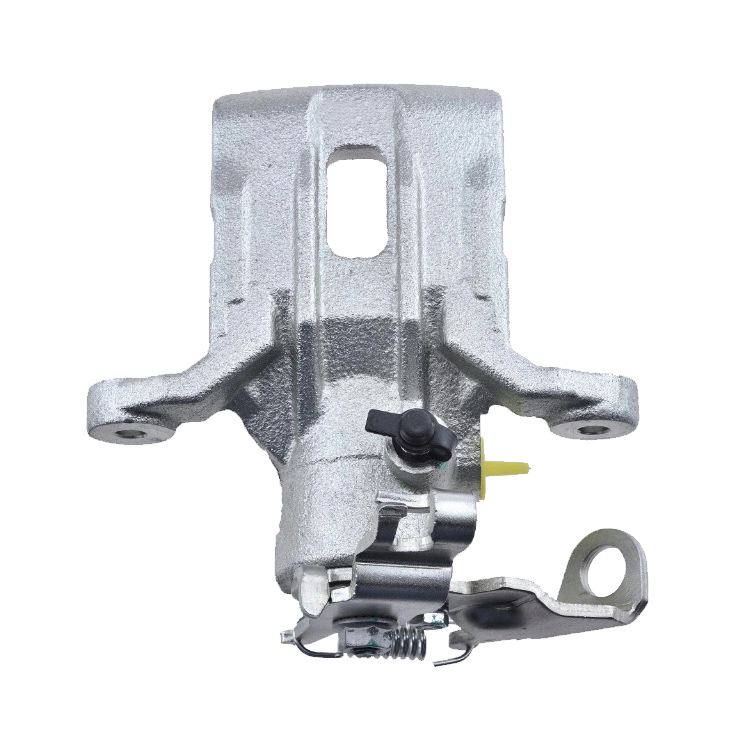

Brake Caliper 344500 1K58250810QQH 583001K300 583101KA30 for HYUNDAI ix20 JC
Reference No.
| BREMBO F 30 174 |
| BUDWEG CALIPER 344500 |
| DELCO REMY DC74500 |
| DRI 4121520 |
| ELSTOCK 86-2251 |
| HERTH+BUSS JAKOPARTS J3210541 |
| NK 213489 |
| sbs 1301213489 |
Part List
| 203441 (REPAIR KIT) |
| 233428 (PISTON) |
| 183441 (SEAL, PISTON) |
| 169102 (GUIDE SLEEVE KIT) |
| 189906 (GUIDE SLEEVE KIT) |
Compatible Applications
| HYUNDAI ix20 (JC) (2010/11 – /) |
Assembling:
1. Install the brake disc and brake pads if necessary.
2. Install the new brake caliper and tighten bolts to the specified torque.
3. Tighten the brake hose and then remove the pressure from the brake pedal
4. Make sure that all movable parts are lubricated and glide easily.
5. Re-connect the pad wear sensor wires if fitted.
6. Bleed the brake system by following the vehicle manufacturer’s guidelines.
7. Mount the wheels.
8. Tighten the wheel bolt/nuts with a torque wrench to the correct torque settings.
9. Check the brake fluid and replenish if necessary. Follow the operating instructions.
10. Check that there is no leakage of brake fluid.
11. Test the brakes on a brake test stand and carry out a test run.
